AmTech ATV-24 (Q-233196)

Condition: New

CFM: 9000 cfm

Voltage: 460V/3

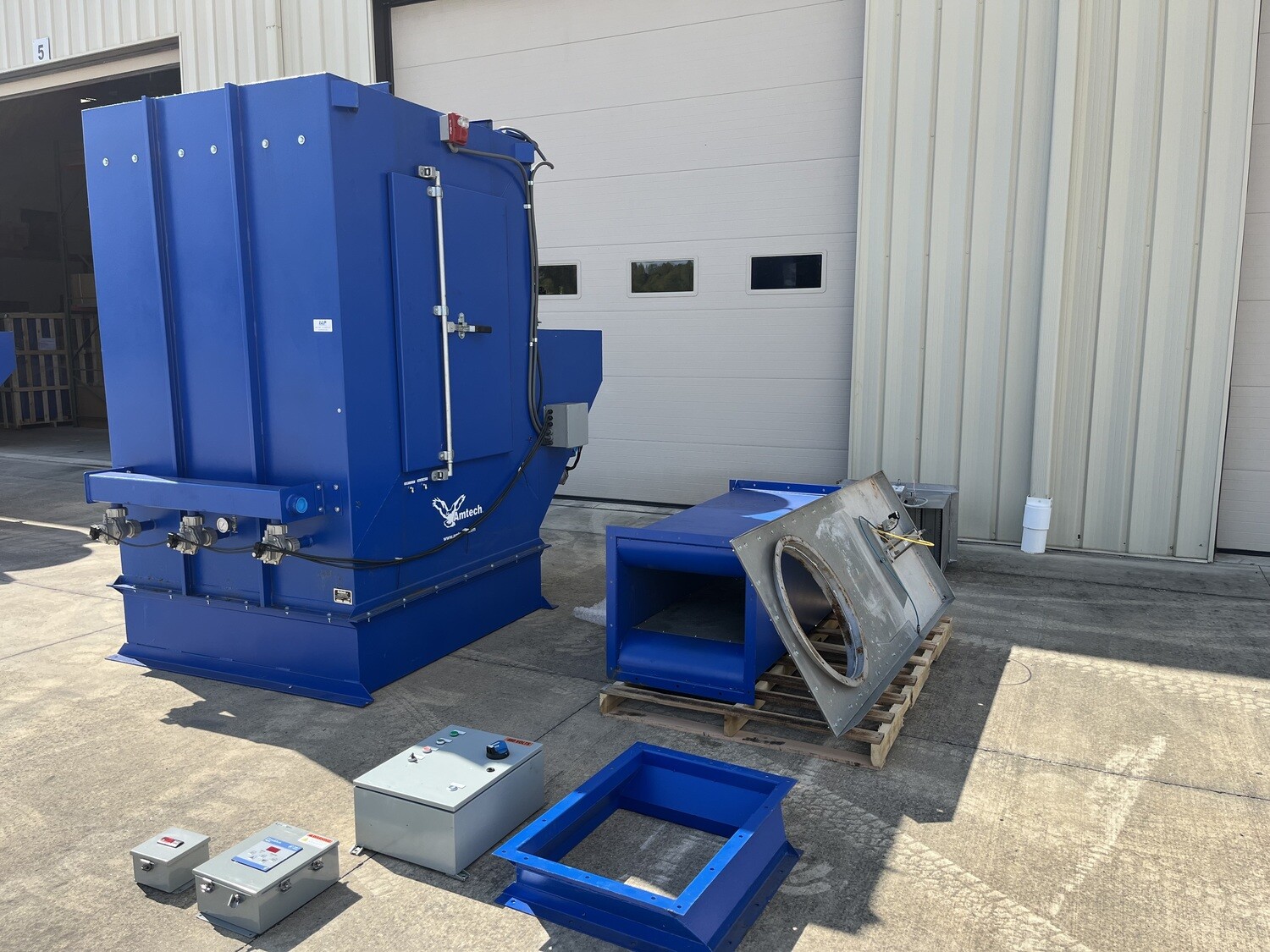

Notes: AmTech Dust Collector ATV-24, includes:

- NEW, good condition, storage rust / marks, shipping marks, never used

- pressure washed, cleaned, and wiped down

- tested and works

- 25 hp motor, exhaust silencer, transition from silencer to damper

- 9000 cfm at 10" wg

- dust drawer hopper (base of collector)

- filter cleaning system, compressed air gauge, NPT connection, 90 psi required

- (24) Cartridge Filters, Fire Retardant, totaling 6096 sq. feet of media

- top inlet, 24 inch, angle flange

- fire alarm mounted to collector (audible / strobe)

- Primary Control Panel (pre-wired), includes:460V, NEMA12, safety disconnect, pre-wired for alarms / gates, on/off button with green running light.Following Alarms:heat/fire, smoke, temperature

- Temperature Control Panel

- Filter Cleaning Control Panel, includes:120V, digital delta P filter cleaning controls

- Junction Box Control Panel (mounted on side of collector)

- filter differential pressure tubing

- hardware

Fire / Heat Alarm Dampers, includes:

- Inlet Slide Gate, 24", compressed air activated through solenoid.Note, weathered as was stored outside

- Outlet damper, motorized

Suppression System, includes:

- suppression bottle (fully charged)

- nitrogen filled lines lining interior of collector

- manual pull

- spare Nitrogen refill charge Kit (charge the lines inside dust collector)

Not Included:

- supports for fan silencer, exhaust damper
