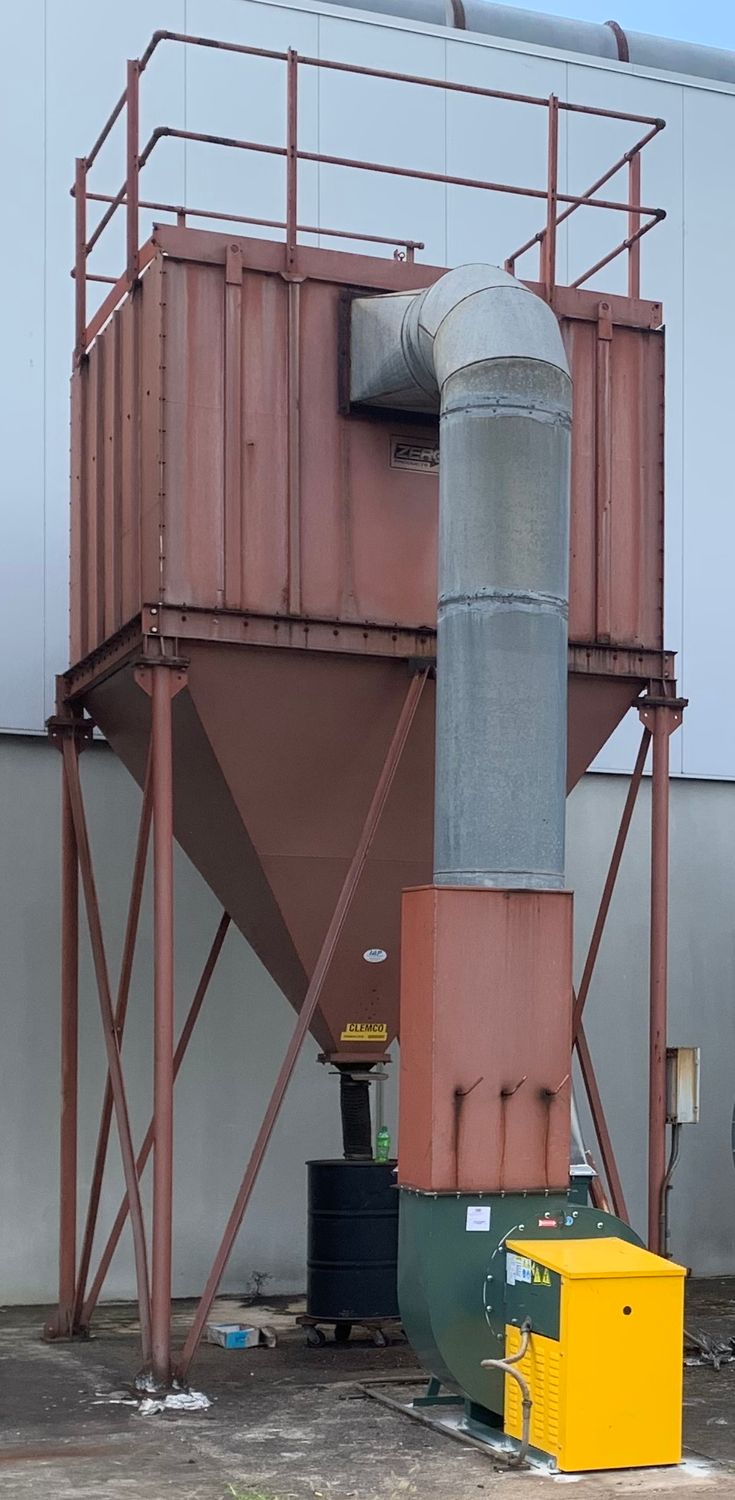

- built in drop out zone in center of collector with screened sides to protect filters on each side
- NEW (20) P033843 nanofiber fire retardant filters, 6020 sq. ft of media
- reverse air filter cleaning system
- top load filters with removable doors, perimeter railing
- ladder
- leg structure for 55 gallon drum or self dumping hopper setup
- slide gate under hopper outlet
- NEW Hardware Kit (nuts/bolts, plumber's putty)
- NEW Drum Cover, hose, (2) hose clamps
- 115" wide (inlet and outlet side) x 98" depth
- overall height to top of railing, 260" (21' 6")
New York Blower Fan, includes:
- USED, good to excellent condition, 2023 date
- 10000 cfm at 10" wg
- 15 HP
- 208-230/460V/3
- belt drive
- exhaust silencer
- 90 degree diffuser inlet box
Ductwork, includes:
- collector rectangular outlet to 24" round to fan rectangular inlet (as seen in picture, approximately 15' long)
- collector rectangular transition inlet to 20" round duct (as seen in picture, approximately 5' long), diffuses airflow before entry into the collector
Filter Cleaning Control Panel, includes:
- USED, good condition
- cleaned, tested, and works
- 120V/1
- digital delta P control panel
Filter Pressure Tubing, includes:
- NEW
- 50 feet tubing to connect from collector to control panel
